Grass land fence machinery

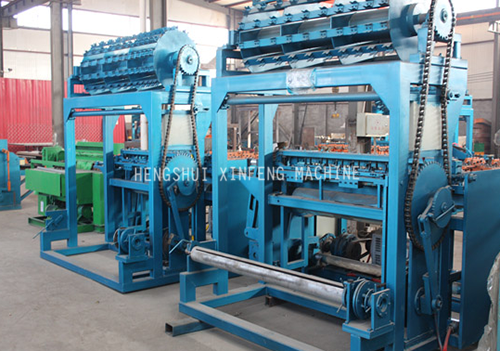

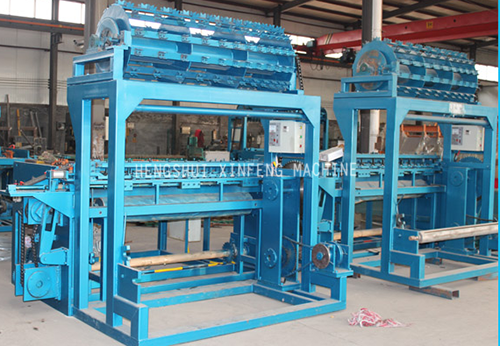

austrilia grass land fence machine / gl wire cattle fence panel machine/ deer feeding fence machine
It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive.Products are neat and beautiful, diversespecifications.











Main Parameter

Type

1422mm

1880mm

2000mm

2400mm

motor

5.5kw

7.5kw

7.5kw

11kw

Dimension

2.8*3.2*2.4(m)

3.3*3.2*2.4(m)

3.4*3.2*2.4(m)

3.9*3.4*2.4(m)

Efficiency

≤45row/min

≤45row/min

≤45row/min

≤45row/min

Twine diameter

1.9-2.5(mm)

1.9-2.5(mm)

1.9-2.5(mm)

1.9-2.5(mm)

Side wire diameter

2.0-3.5(mm)

2.0-3.5(mm)

2.0-3.5(mm)

2.0-3.5(mm)

Voltage

380v

380v

380v

380v

Weight

3.5T

3.8T

4.0T

4.5T

Wrap number

11

13

18

23

Minimum weft opening number

2

4

4

6

Weft number

10

12

17

22

Productivity

21600row/day (150m/h)

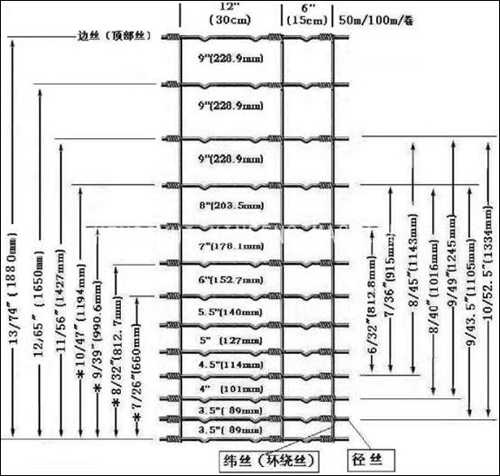

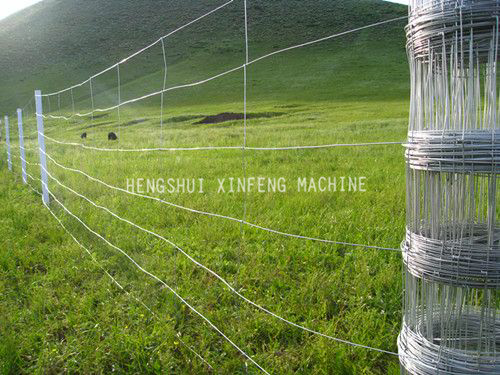

The finished products (Grass land  fence)
