Fixed Knot Fence Machine

Fixed knot fence machine, is also called Deer fence machine, Grassland fence machine, Farm fence machine. Deer fence is extensively used in feeding animals, husbandry, mountain isolation, farm fence, etc
Machine Description  :
Fixed knot fence machine, also called Fixed knot machine or deer fence machine, is used to produce fixed knot fence for livestock husbandry, grassland protection and other isolation usage. Fixed knot fence machine adopts Panasonic control panel, easy operation..
Automatic device for stopping machine.
Panasonic PLC controller–High-degree automation; Easy and safe operation
Sophisticated PLC control and manufacturing technique to ensure machine smooth-running.
Speed-adjustable motor and servo motor to save energy and increase capacity.
Flattening pole to make smooth surface of finished products.
Products with diverse specification.
Protection mesh cover to ensure safety.

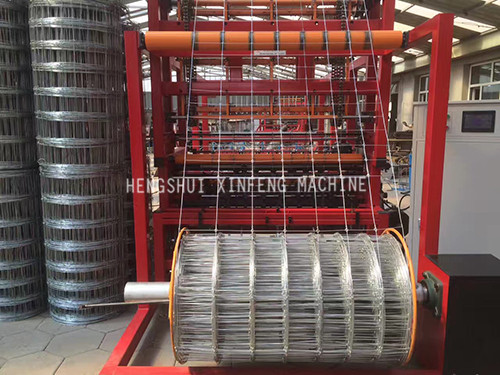

Fixed knot fence machine.


Technical Data:

Model

XF-1500

XF-2100

XF-2440

XF-2800

Max. weaving width

1.524M

2.082M

2.438M

2.8M

Max. number of line wire

16

18

20

24

Line / weft wire diameter

2.4mm-2.6mm

Twisted wire diameter

2.0mm-2.24mm

Line opening

76mm(3”) + N*12.5mm(1/2”);  “N” can be 1, 2, 3, 4……

Weft opening

75mm(3”), 150mm(6”), 300mm(12”), 450mm(18″)

Length of fence each roll

200m(660ft)

Power system

Speed adjustable motor and Servo motor (MIGE ISO9001-2008)

Voltage

As your request.

Control system

PANASONIC PLC  ( Direct voltage 24V)

Weight

8000kg

8700kg

9500kg

10100KGS


Finished products:
