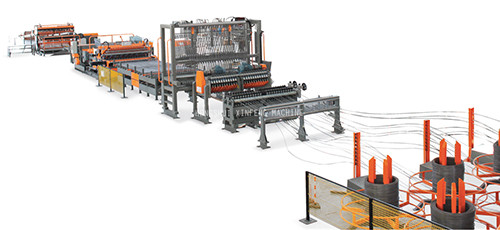

Automatic High speed wire mesh welding lines


Introduction of automatic wire mesh welding lines:

Both line wire coils and cross wire coils for the auto mesh welding machine are automatically straighten, cut and fed. The finished mesh is also automatically recoiled and cut. Line wires are automatically straightening, storage and feeding. Cross wires are automatically straightening, storage and feeding in the production line. Compared with ordinary reinforcing mesh welding equipment, both line wires and cross wires are fed with coils. Automatically feeding, recoil and cut and discharge the welded mesh roll which maximized save labor and greatly increased production.





Model

XF-3/6-2500C

Max width of the panel mesh

2500mm

Max length

6000 mm

Line wire spacing

50-200mm

Cross wire spacing

50-200mm

Wire diameter

3-6mm

Feeding way

Line wire

In coils



Cross wire

In coils

Number of welder

24points

Max. welding speed

60-90 meshes/minute

Electric capacity

500KVA

Air consumption

≥0.8Mpa, 2m3/min

Cooling water consumption

≥0.3Mpa, 3m3/min

Typical application of expanded metal:
